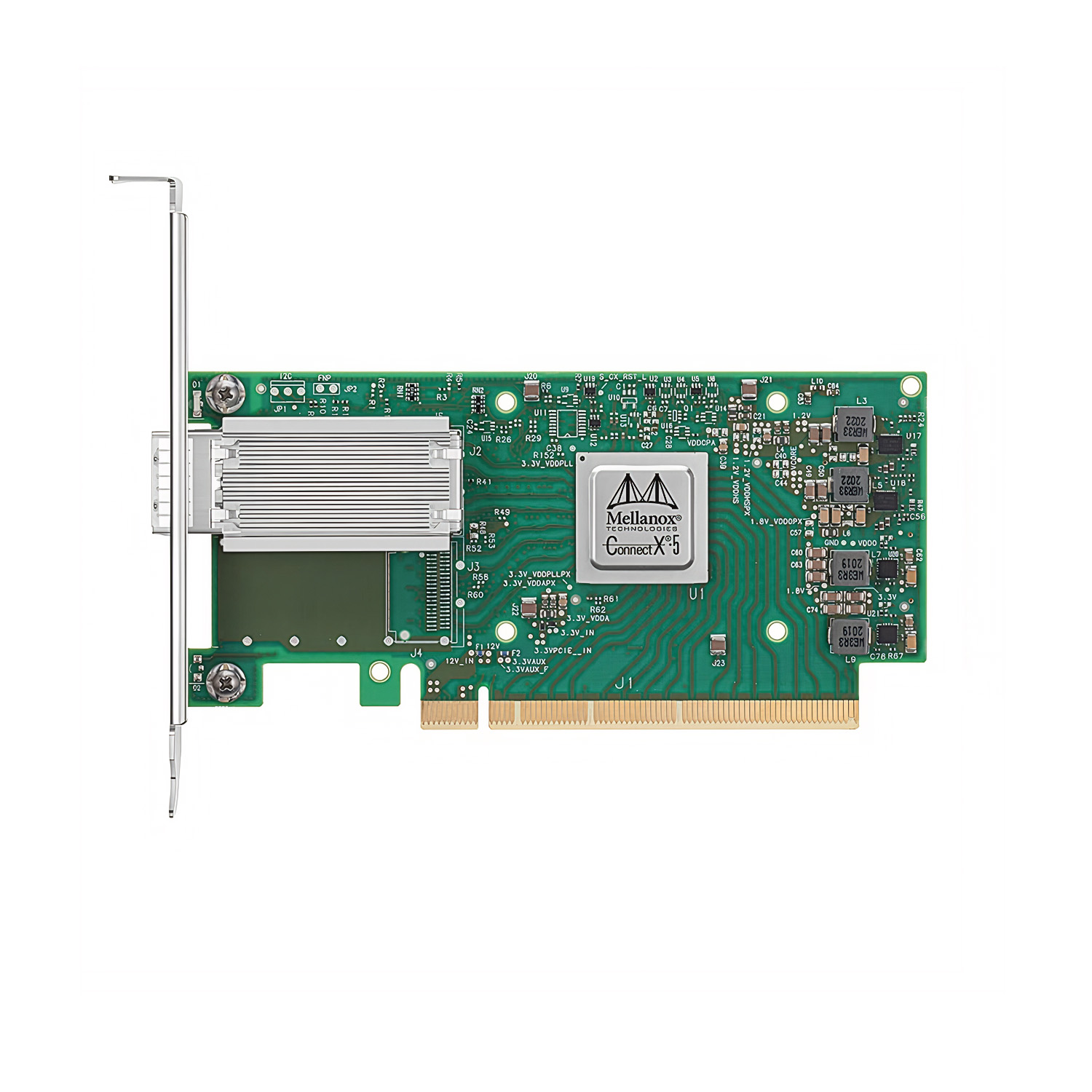

NVIDIA MCX515A-CCAT Mellanox ConnectX®-5 EN Network Interface Card, 100GbE Single-port QSFP28, PCIe Gen 3.0 x16, Tall Bracket
P/N: MCX515A-CCAT
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Single-Port 100GbE QSFP-28 for Adaptive 1/10/25/40/50/100 GbE Speeds
Sub-750ns Latency with 200M Messages/Second Throughput
Hardware-Offloaded VXLAN/NVGRE for Virtualized Network Efficiency
PCIe 3.0 x16 Interface with Gen 2 Backward Compatibility
DCB/PFC/ETS-Based QoS for Predictable Low-Latency Performance
RoCE v2 & NVMe-oF Support for Storage-optimized Workloads
See more
Specifications
Q&A
Reviews
Resources
NVIDIA MCX515A-CCAT Mellanox ConnectX®-5 EN Network Interface Card, 100GbE Single-port QSFP28, PCIe Gen 3.0 x16, Tall Bracket
ConnectX-5 Ethernet adapter cards provide high performance and flexible solutions with up to two ports of 100GbE connectivity, 750ns latency, up to 200 million messages per second (Mpps), and a recordsetting 197Mpps when running an open source Data Path Development Kit (DPDK) PCIe (Gen 4.0). For storage workloads, ConnectX-5 delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads. ConnectX-5 adapter cards also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency. ConnectX-5 adapter cards are available for PCIe Gen 3.0 and Gen 4.0 servers and provide support for 1, 10, 25, 40, 50 and 100 GbE speeds in stand-up PCIe cards, OCP 2.0, and OCP 3.0 form factors. ConnectX-5 cards also offer advanced Mellanox Multi-Host® and Mellanox Socket Direct® technologies.
Specifications
Brand
NVIDIA
Technology
Ethernet
Ports
Single
Port Type
QSFP28
Data Rate
1, 10, 25, 40, 50, 100GbE
Host Interface
PCIe 3.0×16
Input Voltage
12v
Max. Power Consumption
19.7W
Operating Temperature
0 to 55°C (32 to 131℉)
Storage Temperature
-40 to 70°C (-40 to 158℉)
Dimensions (W×D)
68.90×142.24mm
Controller
ConnectX-5
Certification
Features
