NVIDIA MCX623105AC-CDAT Mellanox ConnectX®-6 Dx EN Adapter Card, 100GbE, Single-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot, Tall Bracket
P/N: MCX623105AC-CDAT
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Single-Port QSFP56 100GbE Connectivity
PCIe 4.0×16 Interface for High Bandwidth
IPsec and TLS Inline Encryption for Data Security
Secure Boot with Hardware Root-of-Trust
215 Mpps Message Rate & Sub-0.8 µs Latency
Flexible Programmable Pipeline for Network Optimizatio
See more
Specifications
Q&A
Reviews
Resources
NVIDIA MCX623105AC-CDAT Mellanox ConnectX®-6 Dx EN Adapter Card, 100GbE, Single-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot, Tall Bracket
ConnectX-6 Lx SmartNICs deliver scalability, high-performance, advanced security capabilities and accelerated networking with the best total cost of ownership for 25GbE deployments in cloud, telco, and enterprise data centers. Providing up to two ports of 25GbE or a single-port of 50GbE connectivity, and PCIe Gen 3.0/4.0 x8 host connectivity, ConnectX-6 Lx is a member of Mellanox’s world-class, award-winning, ConnectX family of network adapters. Continuing Mellanox’s consistent innovation in networking, ConnectX-6 Lx provides agility and efficiency at every scale. ConnectX-6 Lx delivers cutting edge 25GbE performance and security for uncompromising data centers.
Specifications
Brand
NVIDIA
Technology
Ethernet
Ports
Single
Port Type
QSFP56
Data Rate
1, 10, 25, 40, 50, 100GbE
Host Interface
PCIe 4.0×16
Input Voltage
12v
Max. Power Consumption
22W
Operating Temperature
0 to 55°C (32 to 131℉)
Storage Temperature
-40 to 70°C (-40 to 158℉)
Dimensions (W×D)
68.90×142.00mm
Controller
ConnectX-6
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
NVIDIA MSN3700-VS2FC Mellanox Spectrum-2 Based 200GbE 1U Open Ethernet Switch with Cumulus Linux, 32 QSFP56 Ports, 2 Power Supplies (AC), Standard Depth, x86 CPU, P2C Airflow, Rail Kit
US$0.00
NVIDIA MCX653105A-ECAT Mellanox ConnectX®-6 VPI Adapter Card, 100Gb/s (HDR100, EDR IB and 100GbE), Single-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00
NVIDIA MCX555A-ECAT Mellanox ConnectX®-5 VPI Adapter Card, EDR IB (100Gb/s) and 100GbE, Single-port QSFP28, PCIe 3.0 x16, Tall Bracket
US$0.00
NVIDIA MCX512A-ACAT Mellanox ConnectX®-5 EN Network Interface Card, 25GbE Dual-port SFP28, PCIe Gen 3.0 x8, Tall Bracket
US$0.00
NVIDIA MCX653106A-ECAT Mellanox ConnectX®-6 VPI Adapter Card, 100Gb/s (HDR100, EDR IB and 100GbE), Dual-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00
NVIDIA MQM9700-NS2R Mellanox Quantum™-2 NDR InfiniBand Switch, 64-Ports NDR, 32 OSFP Ports, Managed, Power-to-connector (C2P) Airflow (forward)
US$27999.00
NVIDIA SN5600 Mellanox Spectrum-4 Based 800GbE 2U Open Ethernet Switch with Cumulus Linux Authentication, 64 OSFP Ports and 1 SFP28 Port, 2 Power Supplies (AC), x86 CPU, Secure-boot, Standard Depth, C2P Airflow, Tool-less Rail Kit
US$0.00

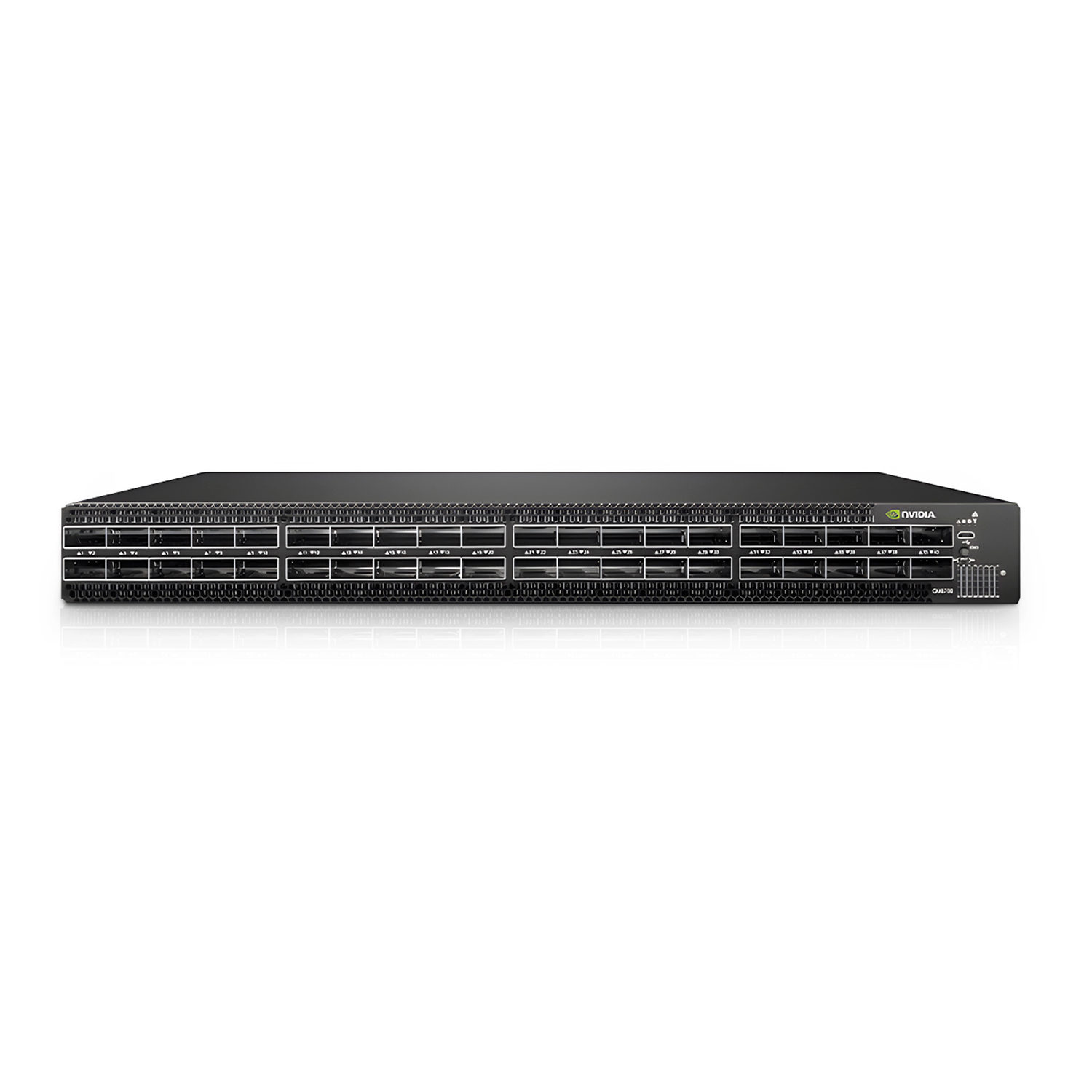

NVIDIA MQM8790-HS2F Mellanox Quantum™ HDR InfiniBand Switch, 40 QSFP56 Ports, 2 Power Supplies (AC), Unmanaged, Standard Depth, P2C Airflow, Rail Kit
