NVIDIA MSN4700-WS2FC Mellanox Spectrum-3 Based 400GbE 1U Open Ethernet Switch with Cumulus Linux, 32 QSFPDD Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
P/N: MSN4700-WS2FC
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

32x400GbE QSFP-DD Ports with 1/10/25/50/100/200GbE Splitter Flexibility
Cumulus Linux with ONIE Support for Multi-OS Deployment
Ultra-Low Latency Architecture for Real-Time AI & HPC Workloads
RoCE v2 & In-Band Telemetry Enable NVMe over Fabrics & High-Frequency Trading
Specifications
Q&A
Reviews
Resources
NVIDIA MSN4700-WS2FC Mellanox Spectrum-3 Based 400GbE 1U Open Ethernet Switch with Cumulus Linux, 32 QSFPDD Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
The SN4000 series switches are the 4th generation of Mellanox Spectrum switches, purpose-built for leaf/spine/super-spine datacenter applications. Allowing maximum flexibility, SN4000 series provides port speeds spanning from 1GbE to 400GbE, and a port density that enables full rack connectivity to any server at any speed. In addition, the uplink ports allow a variety of blocking ratios to suit any application requirement. The SN4000 series is ideal for building wire-speed and cloud-scale layer-2 and layer-3 networks. The SN4000 platforms deliver high performance, consistent low latency along with support for advanced software defined networking features, making it the ideal choice for web scale IT, cloud, hyperconverged storage and data analytics applications.
Specifications
Manufacturer
NVIDIA(Mellanox)
OS
Cumulus
Ports
32*QSFP-DD
Data Rate
1/10/25/40/50/100/200/400GbE
Switch Series
NVIDIA Spectrum-3
Switching Capacity
12.8Tb/s
Latency
300ns
System Memory
16GB
Storage Memory
60GB
Airflow
Back-to-Front (P2C)
Input Voltage
100-110VAC 50/60Hz 15A, 120VAC 50/60Hz 12A, 200-240VAC 50/60Hz 10A
Typ. Power Consumption
630W
Operating Temperature
0 to 35°C (32 to 95℉)
Storage Temperature
-40 to 70°C (-40 to 158℉)
Dimensions (H×W×D)
44×428×568.5mm
Weight
11.6kg
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
NVIDIA MCX555A-ECAT Mellanox ConnectX®-5 VPI Adapter Card, EDR IB (100Gb/s) and 100GbE, Single-port QSFP28, PCIe 3.0 x16, Tall Bracket
US$0.00
NVIDIA MSN4700-WS2F Mellanox Spectrum-3 Based 400GbE 1U Open Ethernet Switch with Onyx, 32 QSFPDD Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
US$0.00
NVIDIA Mellanox UFM Enterprise Platform for NVIDIA® InfiniBand Switches
US$0.00
NVIDIA MQM9700-NS2R Mellanox Quantum™-2 NDR InfiniBand Switch, 64-Ports NDR, 32 OSFP Ports, Managed, Power-to-connector (C2P) Airflow (forward)
US$27999.00
NVIDIA MCX653105A-ECAT Mellanox ConnectX®-6 VPI Adapter Card, 100Gb/s (HDR100, EDR IB and 100GbE), Single-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00

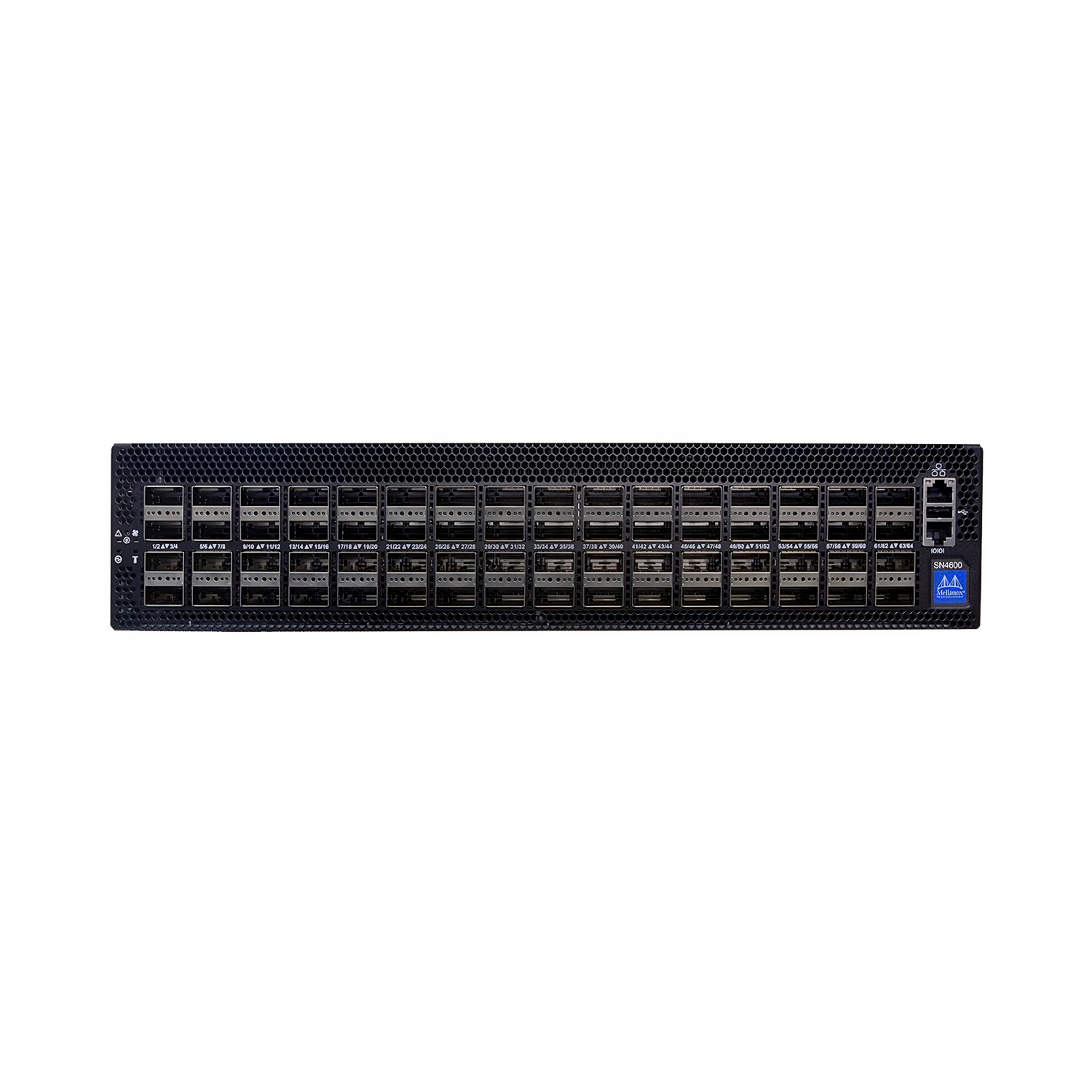

NVIDIA MSN4600-CS2FC Mellanox Spectrum-3 Based 100GbE 2U Open Ethernet Switch with Cumulus Linux, 64 QSFP28 Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
