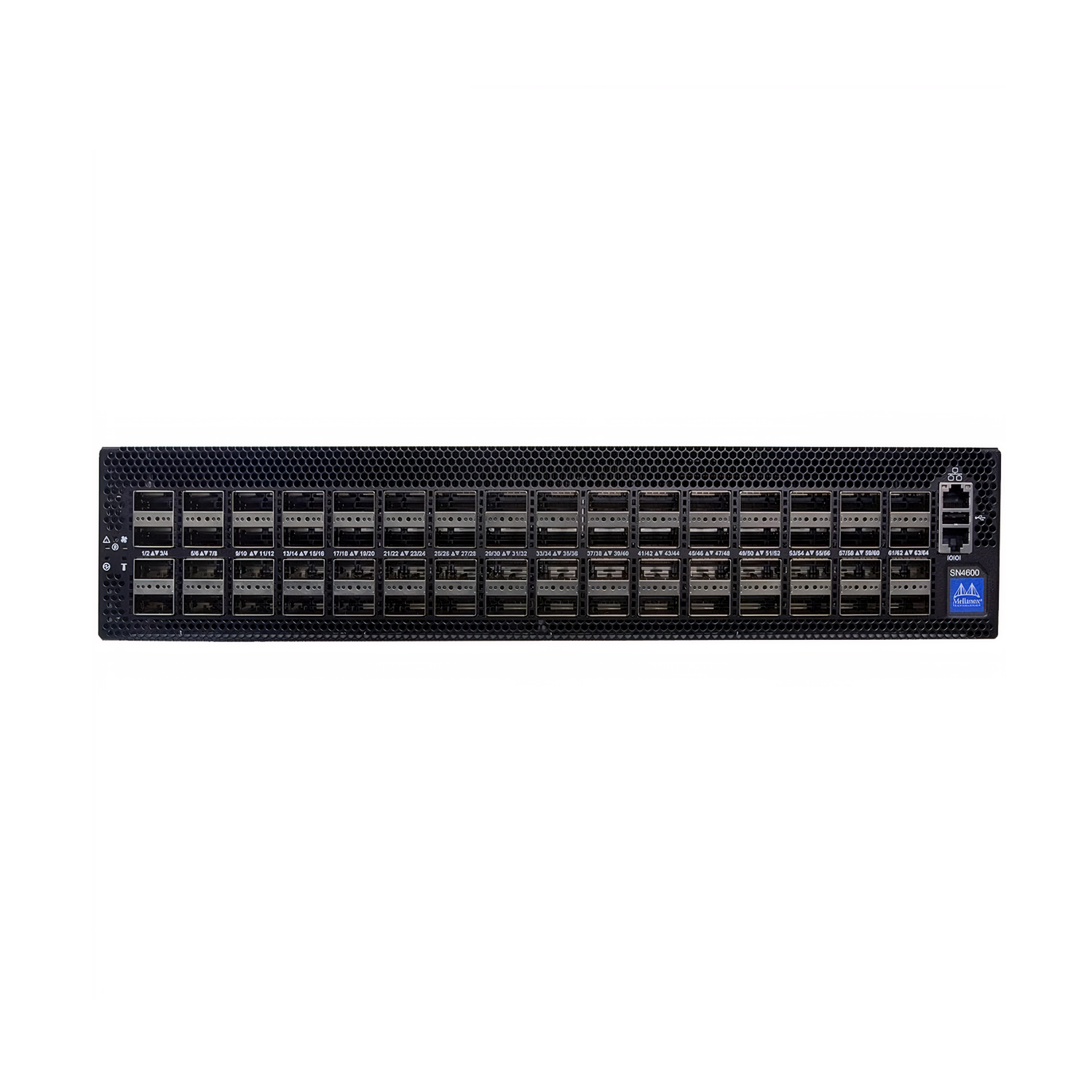

NVIDIA MSN4600-VS2FC Mellanox Spectrum-3 Based 200GbE 2U Open Ethernet Switch with Cumulus Linux, 64 QSFP56 Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
P/N: MSN4600-VS2FC
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

64x200GbE QSFP56 Ports with 10/25/50GbE Splitter Flexibility
Cumulus Linux OS with ONIE Support for Multi-OS Deployment
Ultra-Low Latency Architecture for Real-Time AI & HPC Workloads
RoCE v2 & In-Band Telemetry Enable NVMe over Fabrics & High-Frequency Trading
Specifications
Q&A
Reviews
Resources
NVIDIA MSN4600-VS2FC Mellanox Spectrum-3 Based 200GbE 2U Open Ethernet Switch with Cumulus Linux, 64 QSFP56 Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
The SN4000 series switches are the 4th generation of Mellanox Spectrum switches, purpose-built for leaf/spine/super-spine datacenter applications. Allowing maximum flexibility, SN4000 series provides port speeds spanning from 1GbE to 400GbE, and a port density that enables full rack connectivity to any server at any speed. In addition, the uplink ports allow a variety of blocking ratios to suit any application requirement. The SN4000 series is ideal for building wire-speed and cloud-scale layer-2 and layer-3 networks. The SN4000 platforms deliver high performance, consistent low latency along with support for advanced software defined networking features, making it the ideal choice for web scale IT, cloud, hyperconverged storage and data analytics applications.
Specifications
Manufacturer
NVIDIA(Mellanox)
OS
Cumulus
Ports
64*QSFP56
Data Rate
1/10/25/40/50/100/200GbE
Switch Series
NVIDIA Spectrum-3
Switching Capacity
12.8Tb/s
Latency
300ns
System Memory
16GB
Storage Memory
60GB
Airflow
Back-to-Front (P2C)
Input Voltage
100-127VAC 50/60Hz 10A, 200-240VAC 50/60Hz 6A
Typ. Power Consumption
600W
Operating Temperature
0 to 40°C (32 to 104℉)
Storage Temperature
-40 to 70°C (-40 to 158℉)
Dimensions (H×W×D)
88×428×566.4mm
Weight
14.64kg
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line

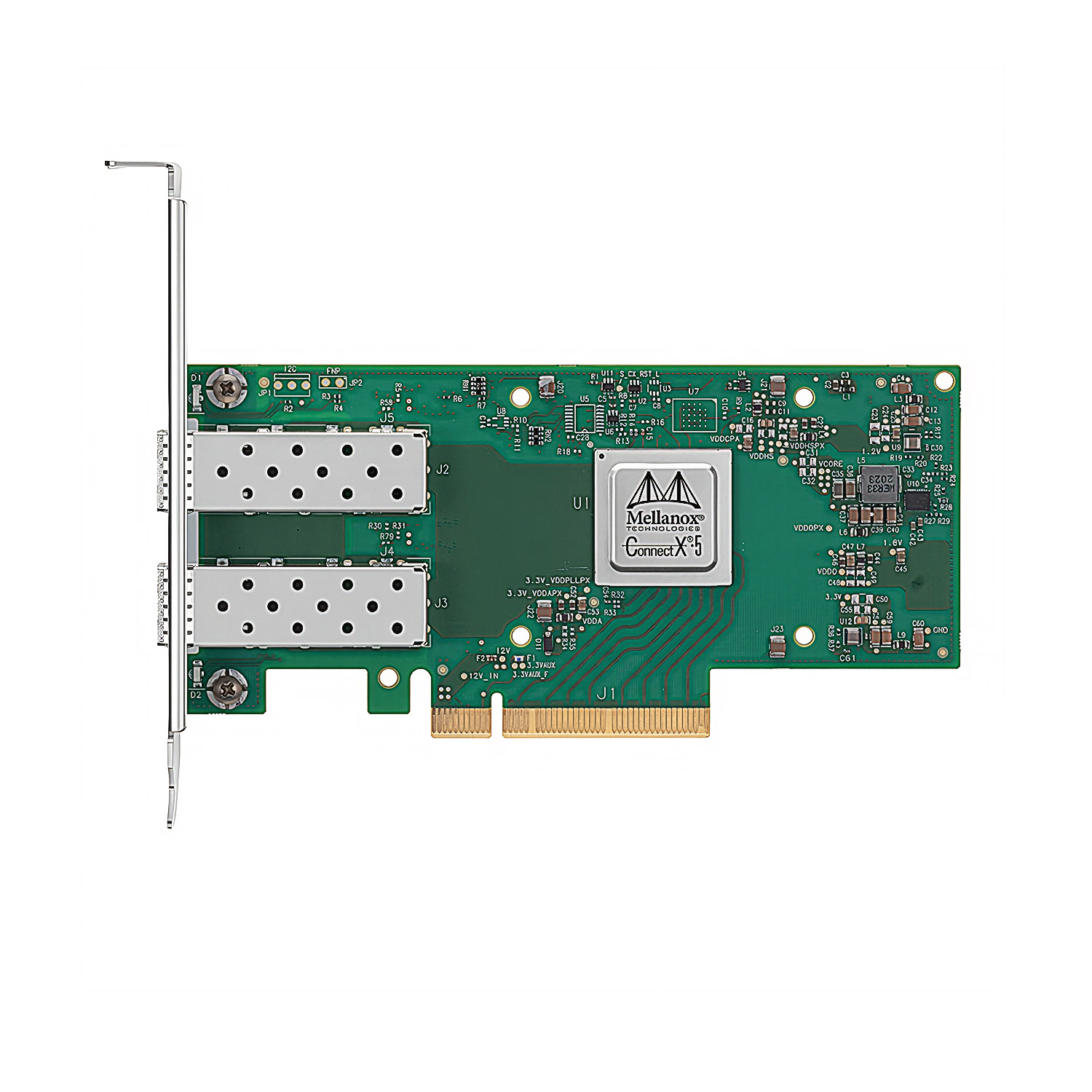

NVIDIA MCX512A-ACAT Mellanox ConnectX®-5 EN Network Interface Card, 25GbE Dual-port SFP28, PCIe Gen 3.0 x8, Tall Bracket
US$0.00
NVIDIA MSN4600-VS2FC Mellanox Spectrum-3 Based 200GbE 2U Open Ethernet Switch with Cumulus Linux, 64 QSFP56 Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
US$0.00
NVIDIA MSN3700-VS2F Mellanox Spectrum-2 Based 200GbE 1U Open Ethernet Switch with NVIDIA Mellanox Onyx, 32 QSFP56 Ports, 2 Power Supplies (AC), Standard Depth, x86 CPU, P2C Airflow, Rail Kit
US$0.00
NVIDIA MSN3700-CS2FC Mellanox Spectrum-2 Based 100GbE 1U Open Ethernet Switch with Cumulus Linux, 32 QSFP28 Ports, 2 Power Supplies (AC), Standard Depth, P2C Airflow, Rail Kit
US$0.00
NVIDIA Mellanox UFM Telemetry for NVIDIA® InfiniBand Switches
US$0.00
NVIDIA MCX653105A-HDAT Mellanox ConnectX®-6 VPI Adapter Card, HDR IB (200Gb/s) and 200GbE, Single-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00
NVIDIA MQM8790-HS2F Mellanox Quantum™ HDR InfiniBand Switch, 40 QSFP56 Ports, 2 Power Supplies (AC), Unmanaged, Standard Depth, P2C Airflow, Rail Kit
US$3899.00

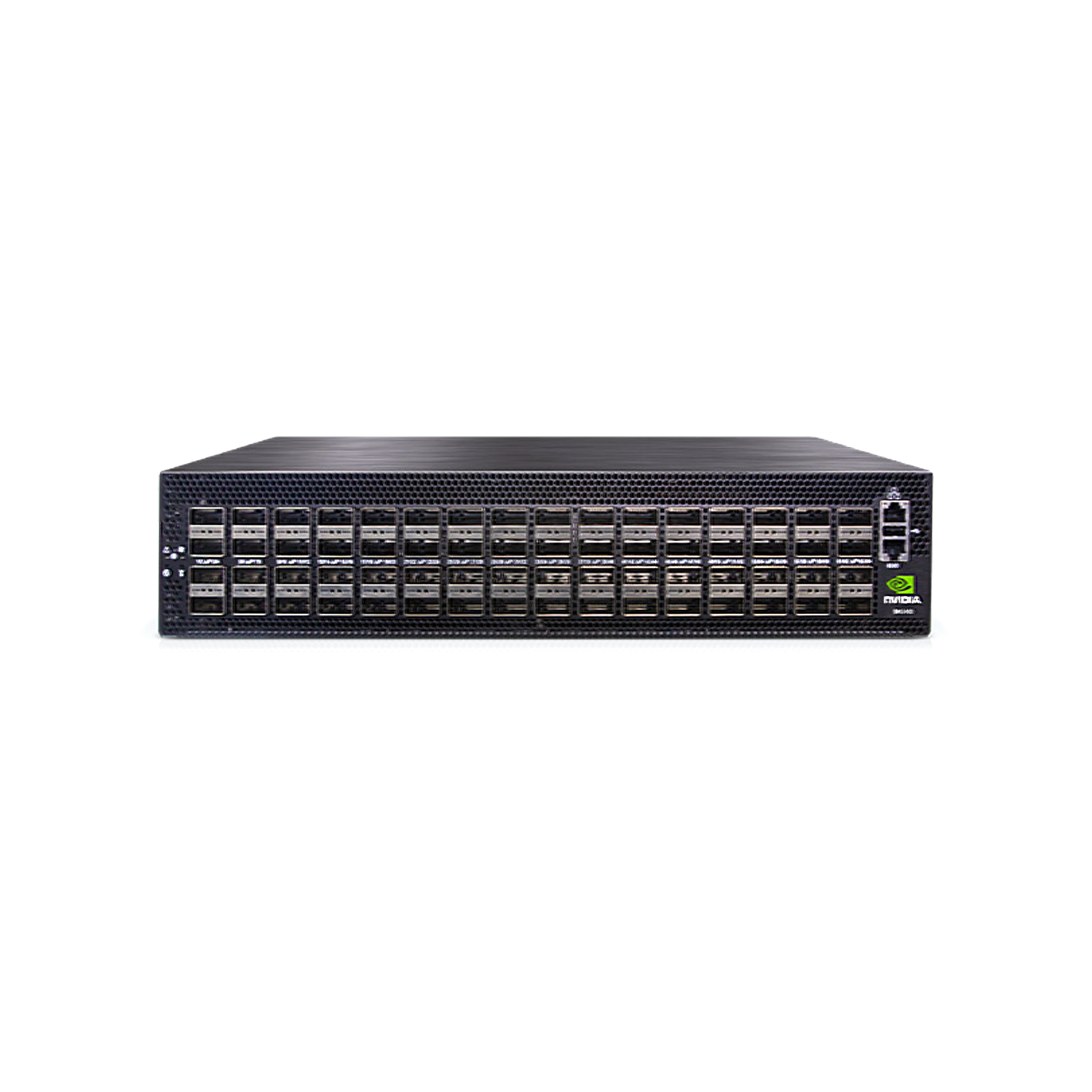

NVIDIA SN5400 Mellanox Spectrum-4 Based 400GbE 2U Open Ethernet Switch with Cumulus Linux Authentication, 64 QSFP56-DD Ports and 1 2xSFP28 Port, 2 Power Supplies (AC), x86 CPU, Secure-boot, Standard Depth, C2P Airflow, Tool-less Rail Kit
US$0.00

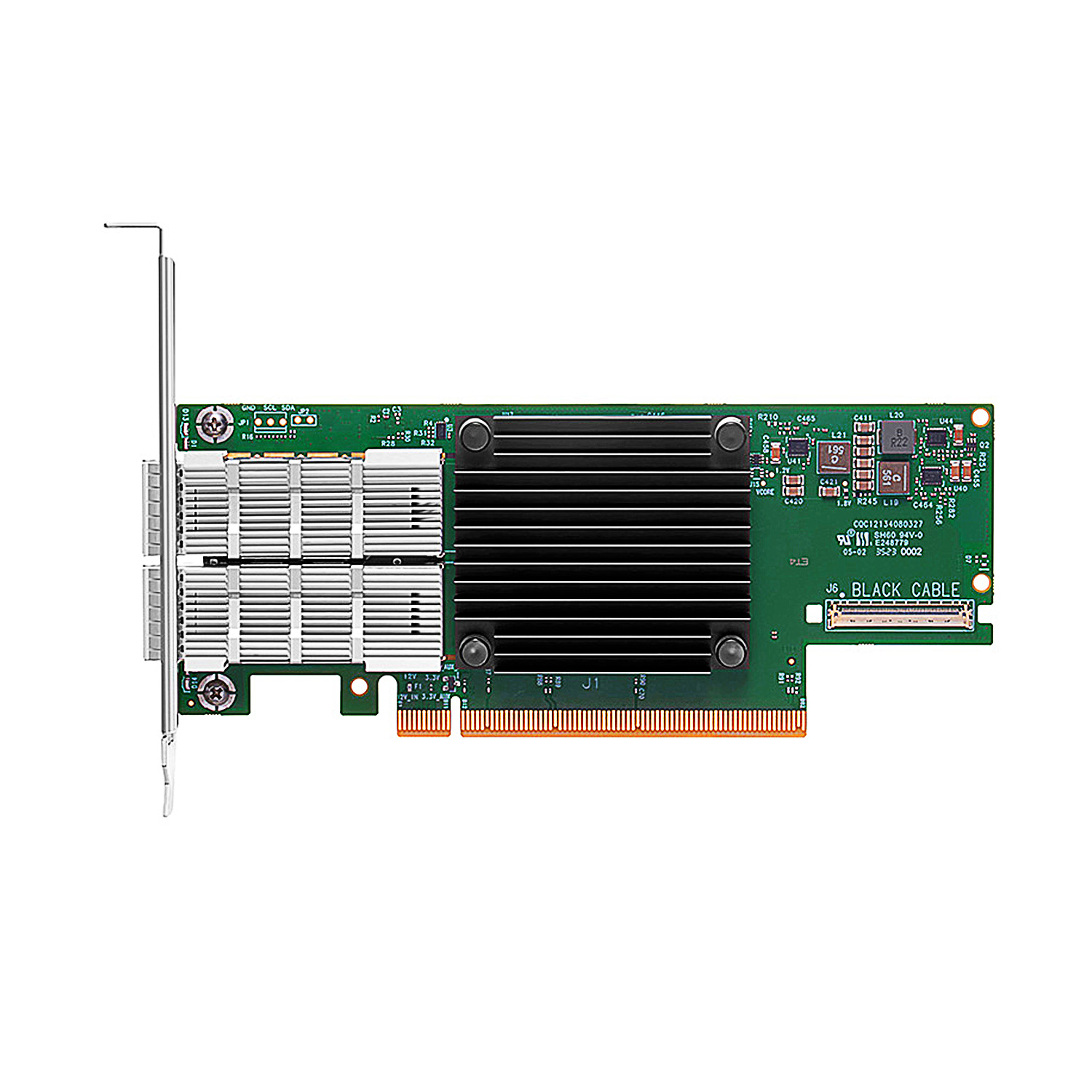

NVIDIA MCX653106A-HDAT Mellanox ConnectX®-6 VPI Adapter Card, HDR IB (200Gb/s) and 200GbE, Dual-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
