Extreme Compatible 10GBASE-SR SFP+ 10G 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module
P/N: SFP-10G-SR
US$59.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 1W, and TO Packaging Features High Reliability
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Small 10G Form Factor for Greatest Density per Chassis
Support 4x10G Fan out and Easy Migration to 40G Platforms
Hot Pluggable SFP+ MSA and RoHS Compliant
Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
Digital optical monitoring capability for strong diagnostic capabilities
See more
Specifications
Q&A
Reviews
Resources
Extreme Compatible 10GBASE-SR SFP+ 10G 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module

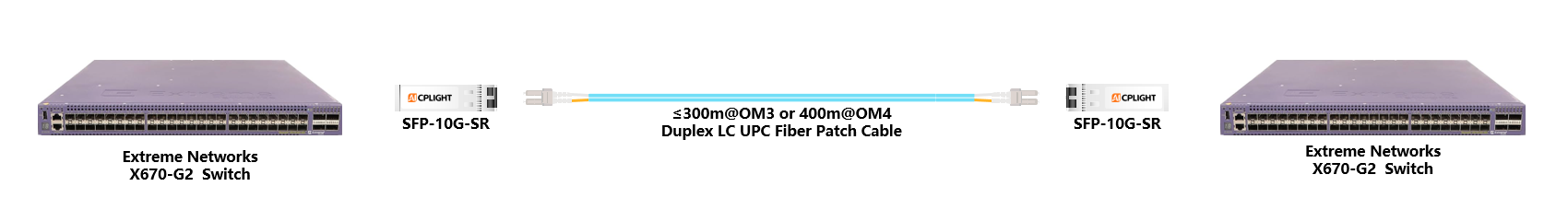

The SFP-10G-SR SFP+ transceiver supports up to 400m link lengths over 4700MHz*km OM4 MMF (300m over 2000MHz*km OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards and for seamless interoperability in multivendor environments and for seamless interoperability in multivendor environments. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Specifications
Part Number
SFP-10G-SR
Vendor Name
CPLIGHT
Form Factor
SFP+
Max Data Rate
10.3125Gbps
Wavelength
850nm
Max Cable Distance
300m@OM3/400m@OM4
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-7.3~-1dBm
Receiver Sensitivity
< -11.1dBm
Power Budget
3.8dB
Receiver Overload
-1dBm
Typical Power Consumption
≤1W
Extinction Ratio
>3dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Core Size
50/125µm
Modulation
NRZ
Protocols
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432,SFP+ MSA Compliant, CPRI, eCPRI
Warranty
5 Years
