Fortinet Compatible 25GBASE-SR SFP28 25G 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module
P/N: SFP-25G-SR
US$135.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Macom Chip, Max. Power Consumption 1W
Interoperable with Other IEEE-compliant 25G Interfaces for Seamless Integration
Tested in Targeted Switch for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3by and IEEE 802.3cc
Support 4x25G Fan out and Easy Migration to 100G Platforms
Applied in 25G Ethernet, Telecom, and Data Center
Hot Pluggable SFP28 MSA Compliant
See more
Specifications
Q&A
Reviews
Resources
Fortinet Compatible 25GBASE-SR SFP28 25G 850nm 100m DOM Duplex LC/UPC MMF Optical Transceiver Module

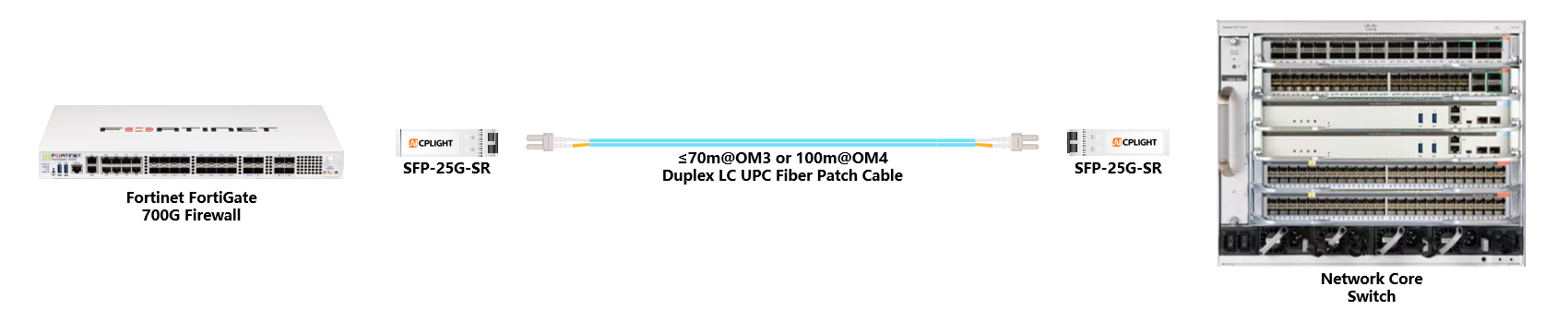

The SFP-25G-SR SFP28 transceiver adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3). The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM/DOM functions monitor the real-time operating status. This hot-swappable transceiver is pre-programmed, uniquely serialized, and tested for data traffic and application performance. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested on a series of Cisco switches, and is fully compliant with the SFP28 MSA, RoHS, CPRI, and the eCPRI standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center.
Specifications
Part Number
SFP-25G-SR
Vendor Name
CPLIGHT
Form Factor
SFP28
Max Data Rate
25.78Gbps
Wavelength
850nm
Max Cable Distance
100m@OM4/70m@OM3
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-7.9~1.9dBm
Minimum Receiver Power
＜-6dBm
Power Budget
-1.9dB
Receiver Overload
2.4dBm
Power Consumption
≤1W
Extinction Ratio
＞2dB
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
Yes
Commercial Temperature Range
0 to 70°C (32 to 158°F)
DDM/DOM
Supported
Core Size
50/125 µm
Packaging Technology
COB Packaging
Protocols
SFF-8472, SFF-8024, SFF-8431, SFF-8432
Warranty
5 Years
Certification
Features
