Dell Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 100G-DR
P/N: QDD-400G-DR4
US$3300.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Inphi Chip, Max. Power Consumption 9W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Compliant with QSFP-DD CMIS Rev5.0, QSFP-DD MSA HW Rev 5.1
Support 4x 100G Breakout to QSFP-DR-100G
Hot Pluggable QSFP-DD Form Factor
High-speed Electrical Compliant to IEEE 802.3bs
QSFP-DD Port is Backward Compatible with QSFP+, QSFP28 and QSFP56 Modules
See more
Specifications
Q&A
Reviews
Resources
Dell Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 100G-DR

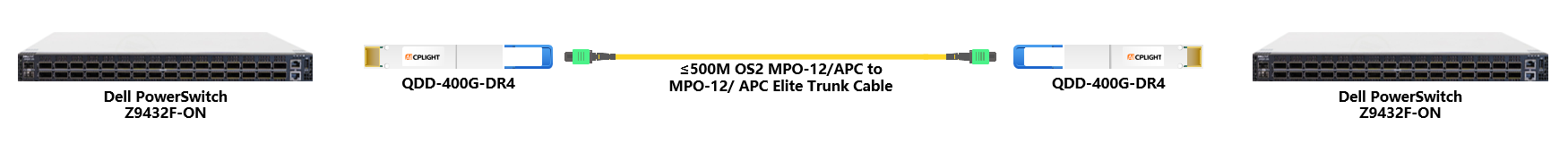

The 400GBASE-DR4 module, MTP/MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-DR-100G. It is a cost-effective and lower power consumption solution for 400GBASE data center.
Specifications
Part Number
QDD-400G-DR4
Vendor Name
CPLIGHT
Form Factor
QSFP-DD
Max Data Rate
425Gbps (4x106.25Gb/s)
Wavelength
1310nm
Max Cable Distance
500m
Connector
MPO-12/APC
Media
SMF
Modulation Format
PAM4
Receiver Type
PIN
TX Power
-2.9~4dBm
Minimum Receiver Power
-5.9dBm
Power Budget
3dB
Receiver Overload
4.0dBm
Max Power Consumption
9W
Extinction Ratio
3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
8x50G-PAM4
Modulation (Optical)
4x100G-PAM4
BER
2.4x10^-4
Inbuilt FEC
No
Protocols
IEEE 802.3bs, QSFP-DD CMIS Rev 5.0, QSFP-DD MSA HW Rev 5.1
Warranty
5 Years
Certification
Features
